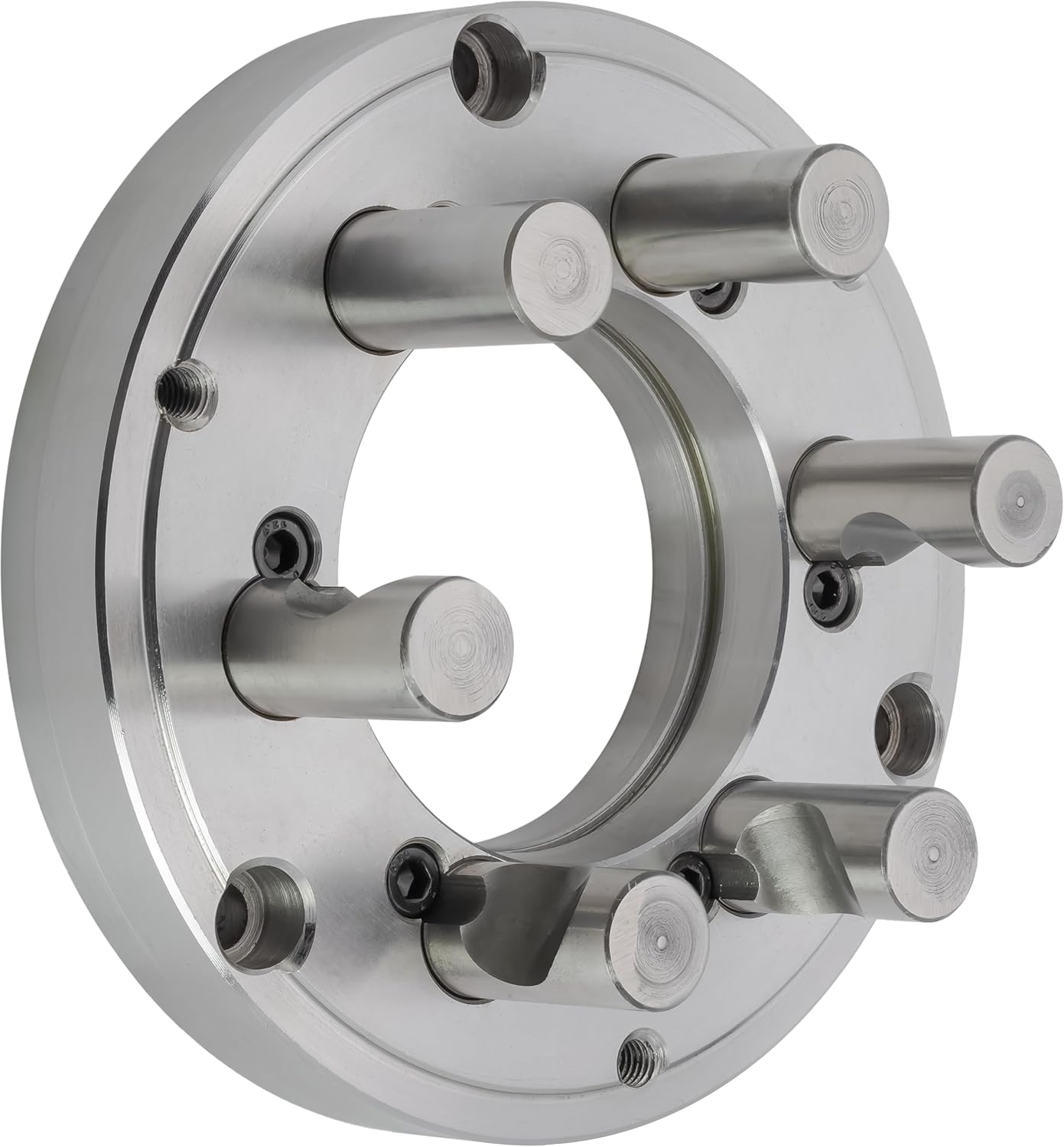

CME 8" D1-5 Camlock Lathe Chuck Backing Plate, Fits Self-Centering (Scroll) Chucks
4.1 (74 items)
Limited Time SaleUntil the end
15
10
06
US$63.19 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$42.13
Product details
| Management number | 221707989 | Release Date | 2026/05/03 | List Price | US$42.13 | Model Number | 221707989 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Lathe Chuck Backing Plate
- Lathe chuck adapter; Fits to plain (flat) back lathe chucks to mount on lathes with D1-5 Camlock spindles
- Plate Diameter: 7 7/8"; Plate Thickness: 1"
- Boss Diameter: 6.5"; Boss Projection: 0.2"
- Mounting Hole Type: Counterbored and Unthreaded (3), Threaded (3); Mounting Hole Thread Size: M10 × 1.5mm; Mounting holes are positioned on a 7.09" diameter circle
- For intended fitment, boss dimensions and mounting hole placement of the back plate should match the registration dimensions and mounting hole placement of the lathe chuck; Front mount lathe chucks require threaded holes while rear mount lathe chucks require unthreaded and counterbored holes on the back plate
| Size | 8" |
|---|---|
| Material | Cast Iron |
| Item Weight | 10 pounds |
| Part Number | ADP-08-D5 |
| Manufacturer | CME Tools |
